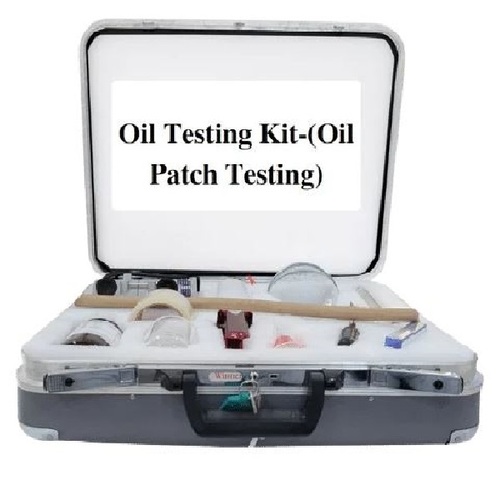

Oil Patch Test Kit

Name: Oil Patch Test Kit
Brand: WISEI ENTERPRISES
Price: 409080 INR
Availability: InStock

409080 INR/Thousand

Get a Price/Quote

Product Details:

Equipment Type Oil Patch Test Kit
Response Time Immediate (manual process)
Test Range Visual patch observation
Number of Specimens Single patch at a time
Resolution Visible particle retention on patch
Features Portable, easy to use, field and lab compatible
Measuring Range Suitable for most standard industrial oils
Click to View more
Share Your Product:

Request to Call Back Send Inquiry

Oil Patch Test Kit Price And Quantity

Minimum Order Quantity 1 Number
Price 409080 INR/Thousand

Typical Application Areas Industrial maintenance departments, service labs, field service
Mobility Fully portable, field-ready kit
Patch View Area Surface view window with secured holder ring
Included Accessories Filter holder unit, vacuum hand pump, measuring cylinder, glass bottles, filter paper packs, forceps, cleaning brush, and storage case
Sample Volume Required Approximately 100 ml per test
Packing Type Carrying hard case
Suitable Fluids Hydraulic oil, lube oil, turbine oil, transformer oil
Vacuum Source Hand vacuum pump included
Kit Material Corrosion-resistant and chemical-resistant components
Observation Method Direct patch visual comparison using reference chart
Filter Paper Type Micron-rated membrane patches (commonly 0.8, 5, or as specified)
Compliance Standard Meets ISO4406 and NAS1638 recommendations

Oil Patch Test Kit Product Specifications

Number of Specimens Single patch at a time
Test Range Visual patch observation
Temperature Ambient
Measuring Range Suitable for most standard industrial oils
Features Portable, easy to use, field and lab compatible
Resolution Visible particle retention on patch
Control Mode Manual
Response Time Immediate (manual process)
Usage Qualitative oil cleanliness checks
Test Stroke Standard stroke, as per test procedure
Test Width 6 inch patch
Equipment Type Oil Patch Test Kit
Machine Weight 2.5 kg
Interface Type Manual operation
Test Speed Standard manual (operator dependent)
Application To determine cleanliness level of oil and hydraulic fluids
Power Supply Not required (non-electrical)
Display Type Visual/Manual
Gas Pressure Atmospheric
Accuracy Dependent on skilled visual assessment
Mounting Type Bench-top
Specimen Size Filter patch diameter 47 mm
Humidity Ambient
Max Height 30 cm (approx for kit case)
Automation Grade Manual

Typical Application Areas Industrial maintenance departments, service labs, field service
Mobility Fully portable, field-ready kit
Patch View Area Surface view window with secured holder ring
Included Accessories Filter holder unit, vacuum hand pump, measuring cylinder, glass bottles, filter paper packs, forceps, cleaning brush, and storage case
Sample Volume Required Approximately 100 ml per test
Packing Type Carrying hard case
Suitable Fluids Hydraulic oil, lube oil, turbine oil, transformer oil
Vacuum Source Hand vacuum pump included
Kit Material Corrosion-resistant and chemical-resistant components
Observation Method Direct patch visual comparison using reference chart
Filter Paper Type Micron-rated membrane patches (commonly 0.8, 5, or as specified)
Compliance Standard Meets ISO4406 and NAS1638 recommendations

Product Description

Basic to Professional : "Millipore Value

Millipore contamination analysis kit consists of assorted Millipore filtration products suited for contamination measurement and control. Millipore Test kit is recommended for ensuring conformance to cleanliness standards popularly known as the "Millipore Value". The kit includes the apparatus shown except standard equipment such as weighing scale, drying oven, microscope, Petri dish, membranes, grounding set, etc. Available in two versions: Basic kit and Professional kit

Vacuum /Pressure Pump, 220V / 50 Hz.

XI55 220 50 01Hydrosol SST Filter Holder, 47 mm

XI20 047 20 01Vacuum Filtering Flask

Xl10 047 05 01Filter Forceps SS

XI62 000 06 01Vacuum Trap

Xl10 VTR AP 01Filterjet Solvent Dispenser

XI67 025 00 01Dispensing Pressure Vessel, 5L

XI67 OOP 05 01Solvent Filtering Dispenser

XI66 025 00 01Vacuum Hose silicone XI71 000 04 01

Efficient Oil Cleanliness Assessment

Evaluate the quality of industrial oils swiftly with our Oil Patch Test Kit. This field-ready solution delivers visual clarity through micron-rated filter patches, enabling direct comparison with standard reference charts. Its corrosion-resistant build guarantees durability and accuracy for maintenance teams and service labs.

Portable and Easy to Operate

Designed for mobility and practicality, the kit features a robust storage case and lightweight components. No electrical power is needed-results are immediate via manual operation, making the kit suitable for on-site inspection as well as laboratory work.

FAQ's of Oil Patch Test Kit:

Q: How is the oil patch test performed using this kit?

A: To conduct the test, extract a 100 ml oil sample using the included accessories, pass the sample through the micron-rated filter patch with the vacuum hand pump, and visually compare the retained particles on the patch with the reference chart provided.

Q: What types of fluids can be analyzed with this test kit?

A: The Oil Patch Test Kit is suitable for hydraulic oils, lube oils, turbine oils, and transformer oils commonly used in industrial equipment.

Q: When should I use an oil patch test for my equipment?

A: Utilize this kit during routine maintenance checks, after repairs, or whenever you need to verify the cleanliness of oils to prevent contamination-related equipment issues.

Q: Where is the Oil Patch Test Kit typically used?

A: The kit is ideal for industrial maintenance departments, service laboratories, and field service teams-wherever oil cleanliness needs to be confirmed on-site or in a lab.

Q: What is the process for interpreting the test results?

A: After filtering the sample, visually inspect the membrane patch using the holder unit and surface view window. Compare the observed particles to the reference chart to estimate oil cleanliness according to ISO4406 and NAS1638 standards.

Q: How does the kit benefit industrial operations?

A: By offering fast, qualitative oil cleanliness testing, the kit helps maintain machinery health, reduces downtime, and ensures compliance with international cleanliness standards, fostering reliable equipment performance.
